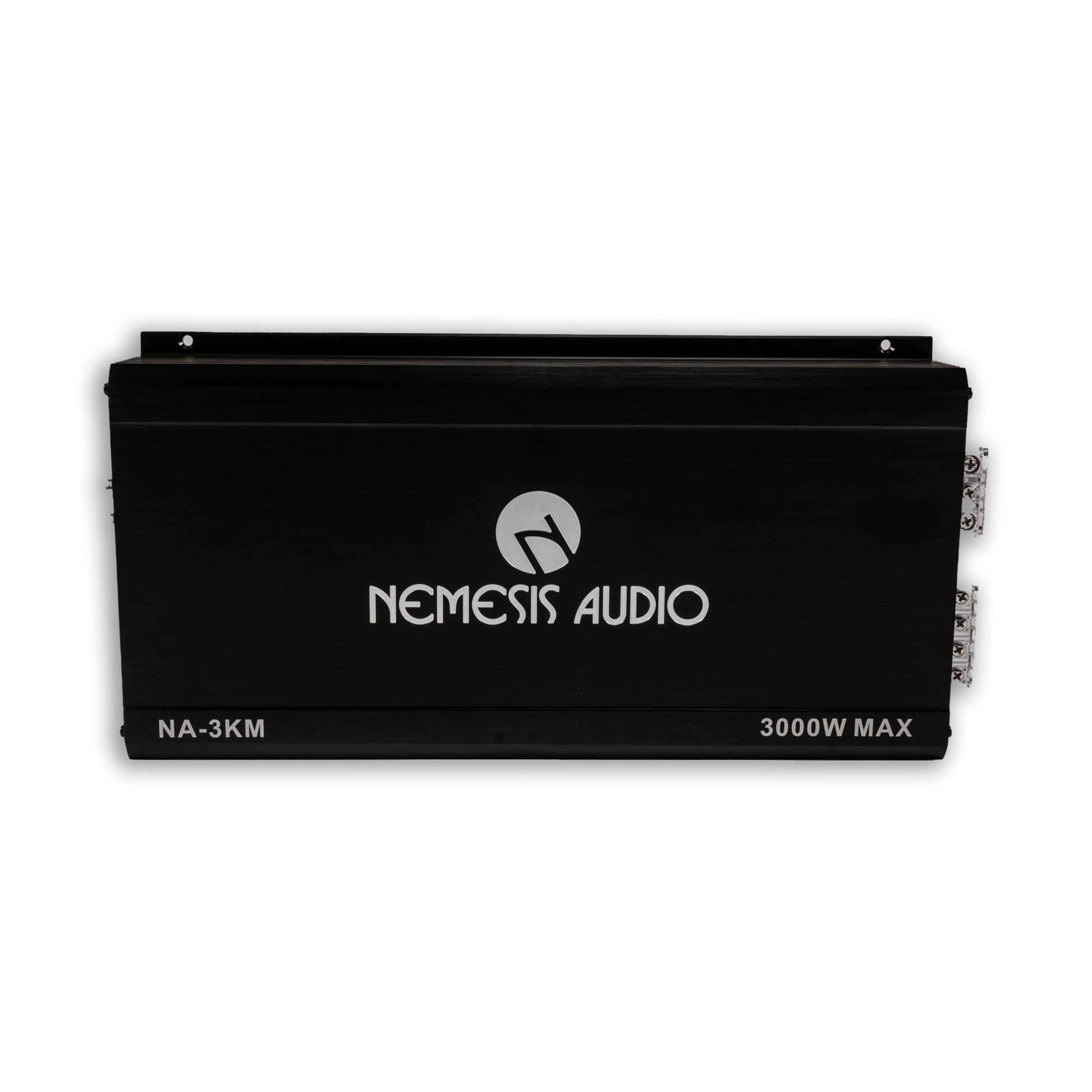

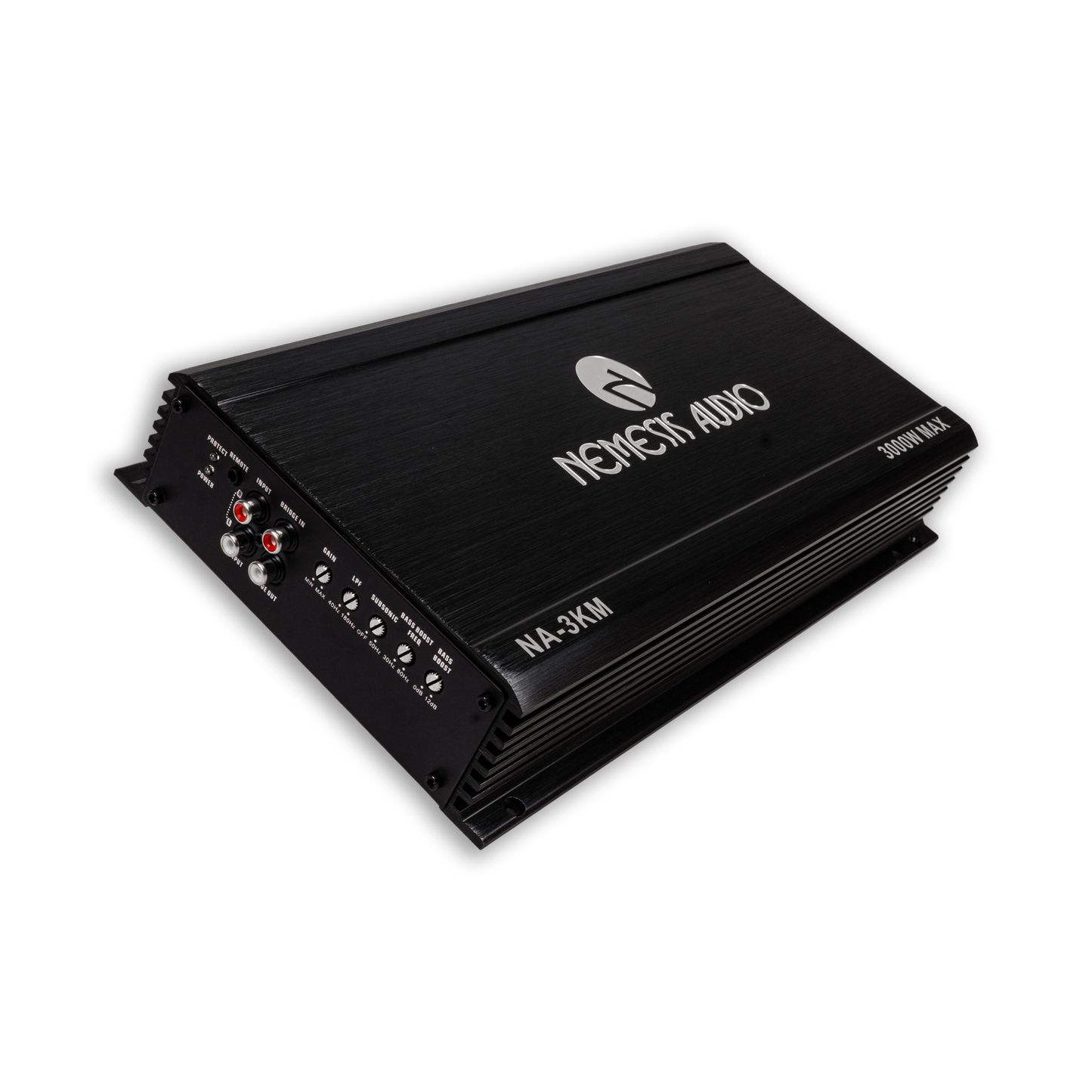

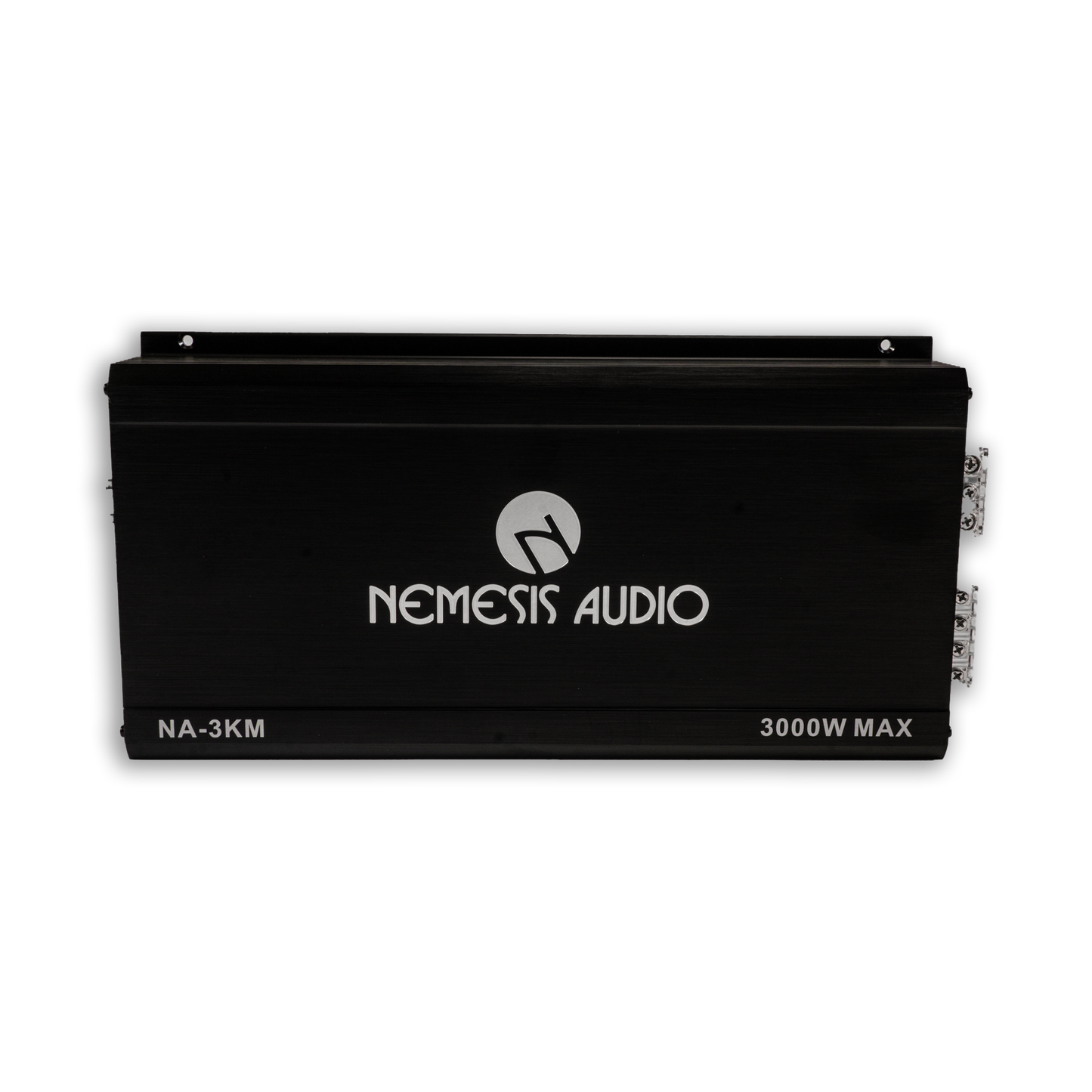

NA-3KM

1500W RMS Class D 1-Channel Car Amplifier

RMS / MAX @ 4-Ohm: 600W/1200W
RMS / MAX @ 2-Ohm: 950W/1900W
RMS / MAX @ 1-Ohm: 1500W/ 3000W
Input Level: 0.2V–5V
Frequency Response: 8Hz–180Hz
LPF: 40Hz–180Hz
Subsonic Filter: 5Hz–50Hz
Bass Boost Frequency: 30Hz–80Hz
Bass Boost Level: 0-12dB
THD at 4 Ohm load 30% Rated Power: <0.2% Signal to Noise Ratio: >70dB
Best Efficiency: >85%
Minimum Load: 1-Ohm
Dimensions: 341x185x55mm
