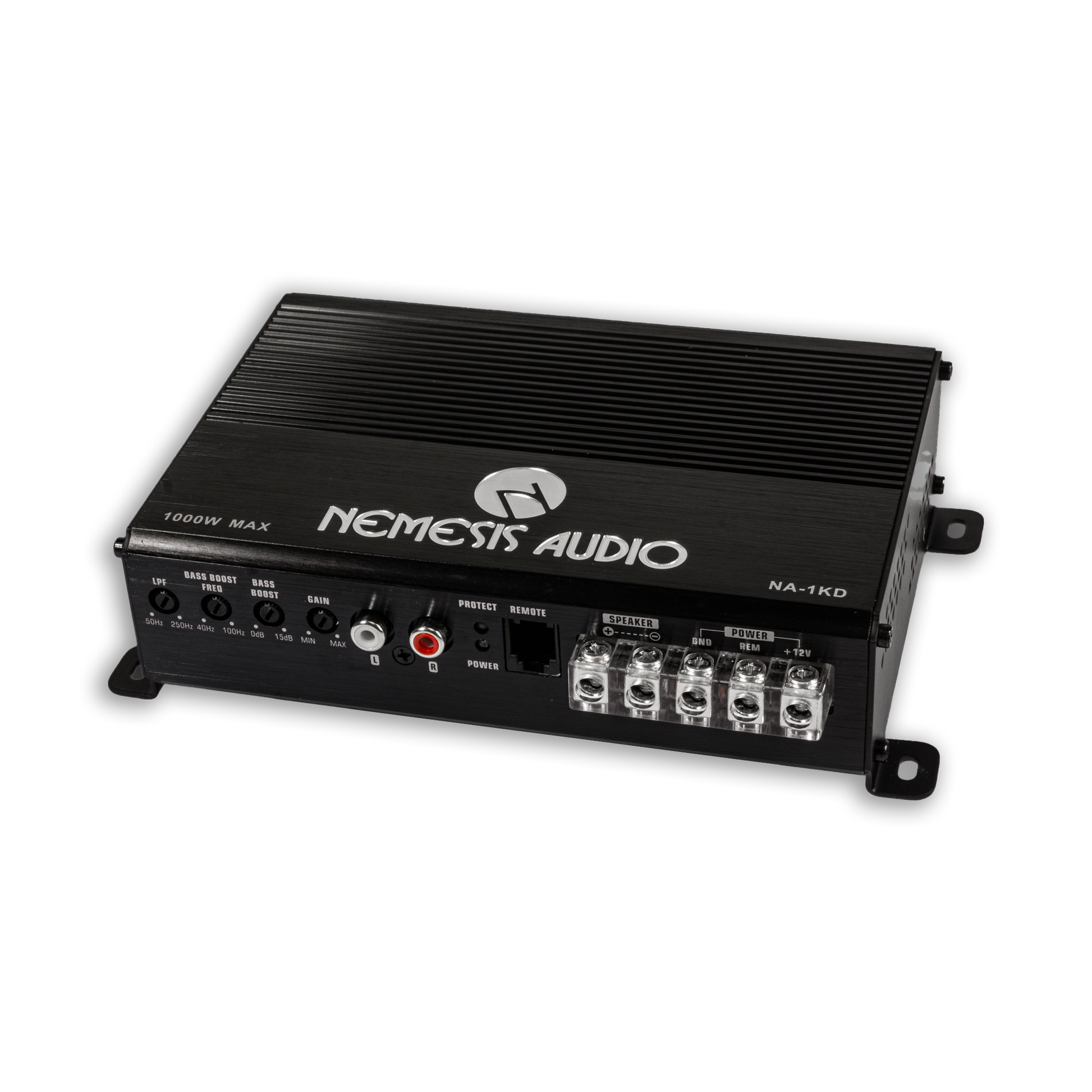

NA-1KD

Class-D 1-Channel Car Amplifier 575W RMS @ 1-Ohm

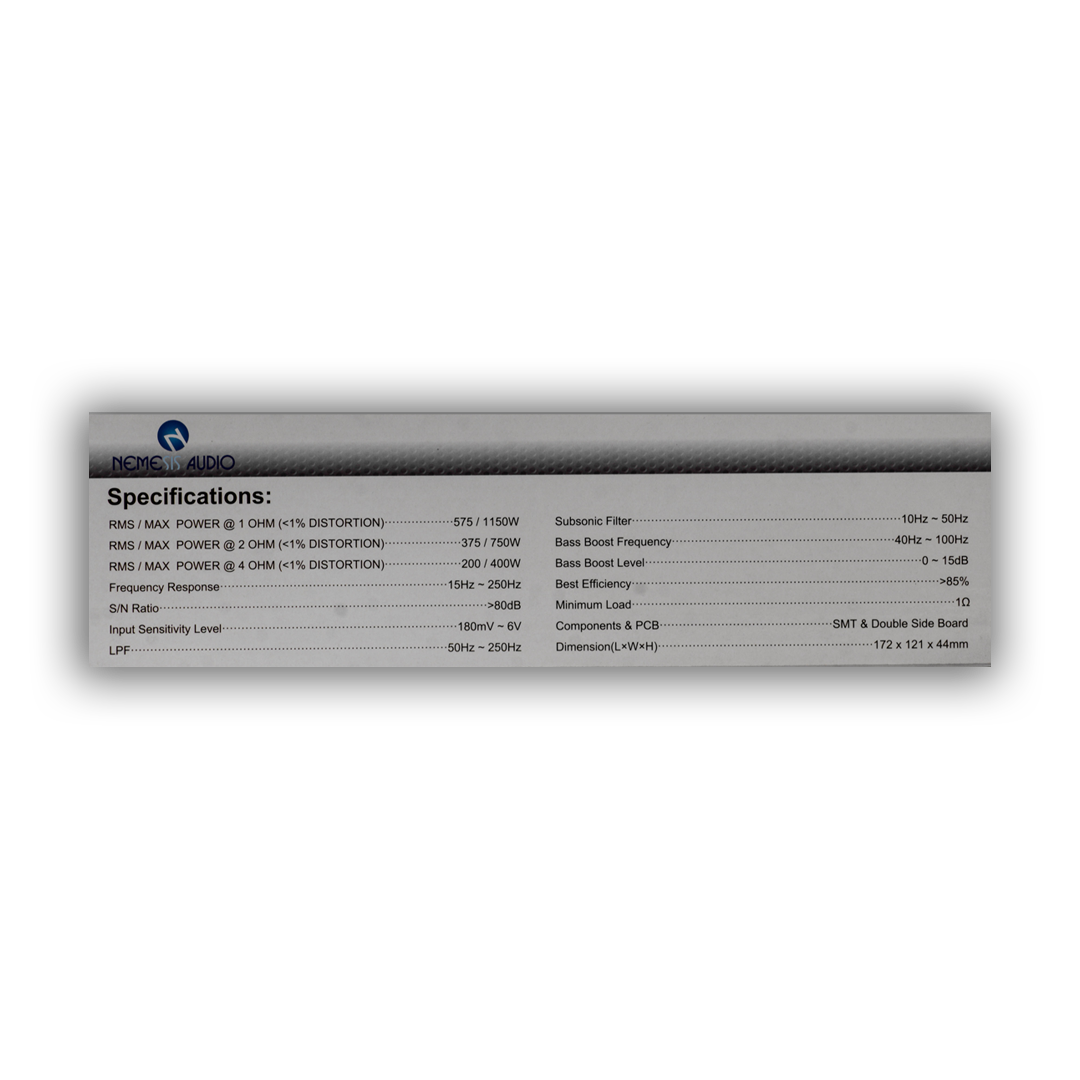

RMS / MAX @ 4-Ohm: 200W/400W
RMS / MAX @ 2-Ohm: 375W/750W
RMS / MAX @ 1-Ohm: 575W/ 1150W
Input Level: 0.2V–5V
Frequency Response: 15Hz–250Hz
LPF: 50Hz–250Hz
Subsonic Filter: 10Hz–50Hz
Bass Boost Frequency: 40Hz–100Hz
Bass Boost Level: 0-15dB
THD at 4-Ohm Load 30% Rated Power: <0.2% Signal to Noise Ratio: >80dB
Best Efficiency: >85%
Minimum Load: 1 Ohm
Dimensions: 172x121x44mm
